CPXX series for small shell size- TECH-LONG

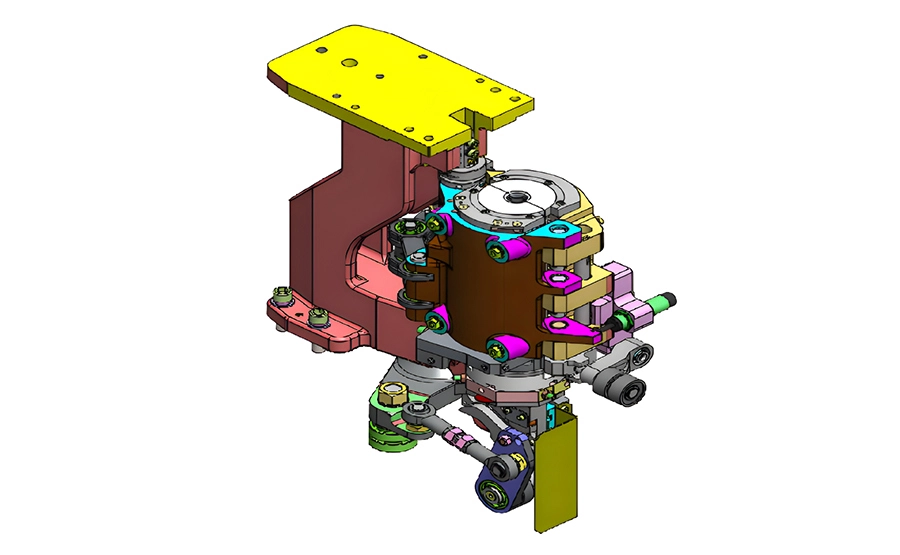

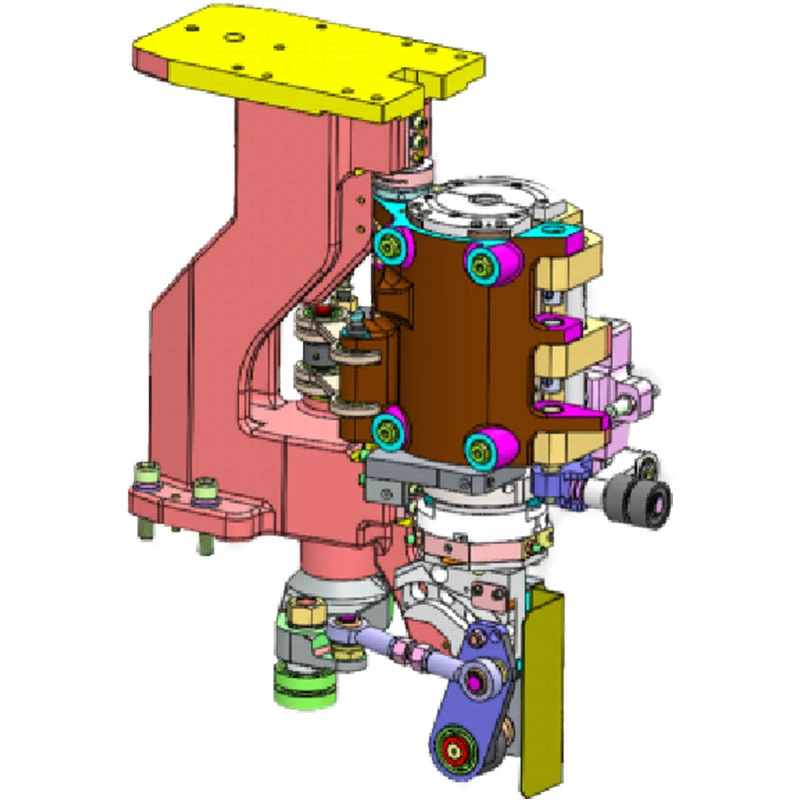

The CPXX series was developed with the same advanced technology as the standard CPX series machines. The mold support unit was designed to run smaller bottle sizes up to 750ml allowing for optimizing with more stations versus the standard CPX machine frame. The blower can be used as a stand alone machine to make containers independently or before the filling line or combined with a filler to make a mono-bloc Blow-Fill-Cap machine.
CPXX series can handle the bottle sizes from 0.25L-0.75L up to a maximal output of 95400 BPH.
Technical Features
●Same output per hour as standard machine(CPX SERIE) with smaller footprint.
●Reduced Capex.
●The best option for small bottle size.
Technical data
|
CPXX series (maximum bottle volume 0.75L, efficiency 95%) |
|||||||||
|
Serial number |
Optimal model |
Number of cavities |
Water bottle (≤770ml) |
CSD bottle (≤600ml) |
Outer diameter of mold shell support (unit:Φ) |
Mold outer diameter (unit:Φ) |
Maximum bottle size |
||
|
Output per mold |
Output total |
Output per mold |
Output total |
||||||
|
1 |
CPXX12B |
12 |
2800 |
33600 |
2400 |
28800 |
130 |
100 |
Φ74x260 |
|
2 |
CPXX14B |
14 |
2800 |
39200 |
2400 |
33600 |
|||
|
3 |
CPXX16B |
16 |
2800 |
44800 |
2400 |
38400 |
|||
|
4 |
CPXX18B |
18 |
2800 |
50400 |
2400 |
43200 |
|||
|
5 |
CPXX20B |
20 |
2800 |
56000 |
2400 |
48000 |
|||
|
6 |
CPXX22B |
22 |
2800 |
61600 |
2400 |
52800 |
|||
|
7 |
CPXX24B |
24 |
2800 |
67200 |
2400 |
57600 |
|||
|
8 |
CPXX26B |
26 |
2800 |
72800 |
2400 |
62400 |
|||
|
9 |
CPXX28B |
28 |
2800 |
78400 |
2400 |
67200 |
|||
|
10 |
CPXX30B |
30 |
2800 |
84000 |
2400 |
72000 |
|||
|
11 |
CPXX32B |
32 |
2800 |
89600 |
2400 |
76800 |
|||
|
12 |
CPXX34B |
34 |
2800 |
95200 |
2400 |
81600 |
|||
|
13 |
CPXX36B |
36 |
2800 |
100800 |
2400 |
86400 |
|||
