CPXG series for extra large shell size- TECH-LONG

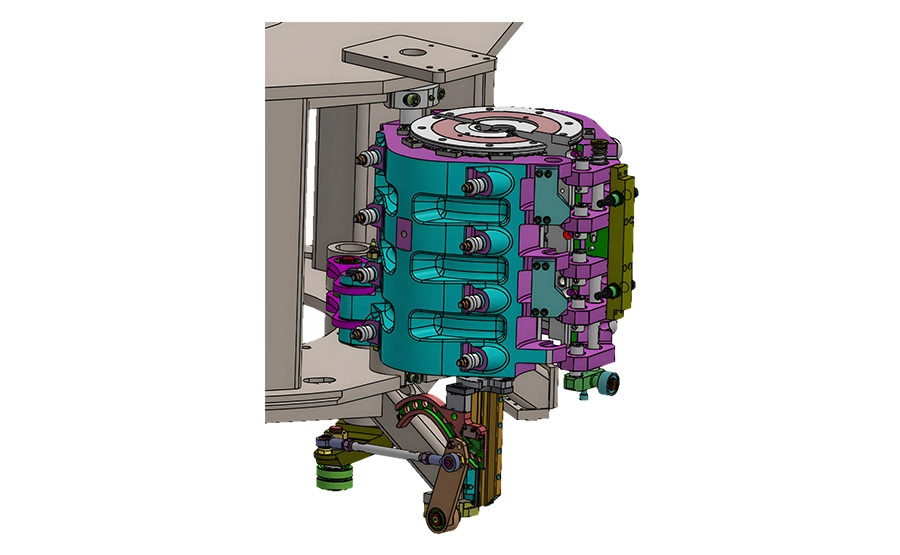

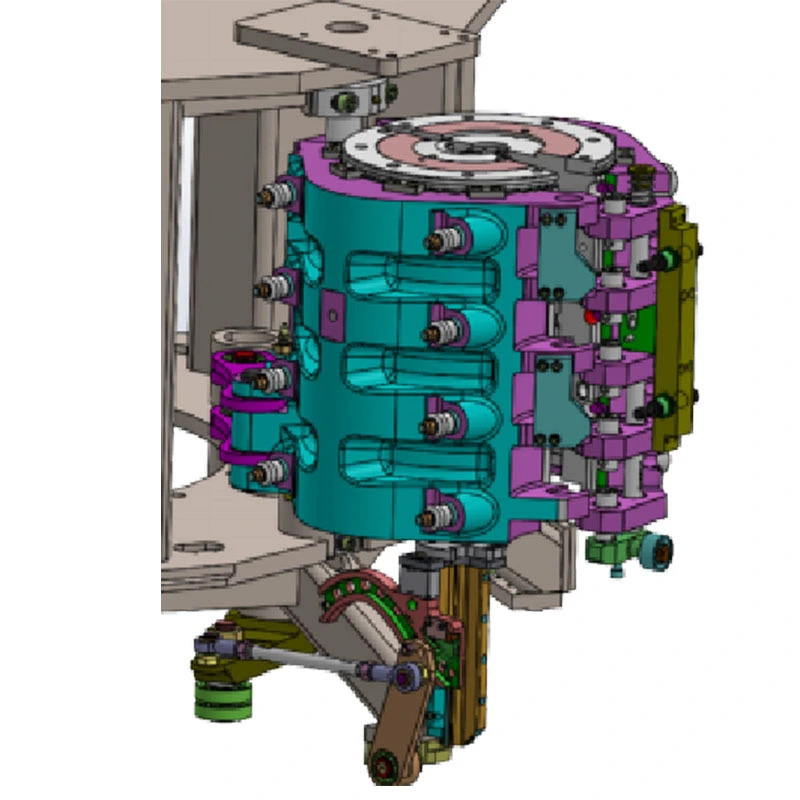

The CPXG series was developed with the same advanced technology as the standard CPX series machine. The mold support unit was designed to run larger mold sizes allowing for blowing bottles with the capacity of 12-20L. The blower can be used as a stand alone machine to make containers independently or before the filling line or combined with a filler to make a mono-bloc Blow-Fill-Cap machine.
The CPXD series can handle the bottle sizes from 12- 20L up to a maximal output of 3600 BPH.
Technical Features
● High production efficiency.
●Good option for extra large bottle size as the blown bottles of stable and reliable quality.
●Additional high-pressure air recovery system to reduce energy consumption and cooling channel for quick shaping of blown bottles to increase production efficiency.
Technical data
|
CPXG series (12-20L, efficiency 95%) |
||||||
|
Scope of application: water, edible oil, etc. |
||||||
|
Serial number |
Model |
Number of cavities |
Output (12L) |
Output(20L ) |
Mold outer diameter (unit: Φ) |
Maximum bottle size |
|
1 |
CPXG02 |
2 |
1200 |
1000 |
360 |
Φ280x500 |
|
2 |
CPXG03 |
3 |
1800 |
1500 |
||
|
3 |
CPXG04 |
4 |
2400 |
2000 |
||
|
4 |
CPXG06 |
6 |
3600 |
3000 |
||
|
5 |
CPXG08 |
8 |
4800 |
4000 |
||
|
6 |
CPXG10 |
10 |
6000 |
5000 |
||
